What is a high-frequency transistor? The composition, characteristics, principles, applications, installation, and distinction between high-frequency transistors and low-frequency transistors

Date:2025-06-23 Categories:Product knowledge Hits:649 From:Guangdong Youfeng Microelectronics Co., Ltd

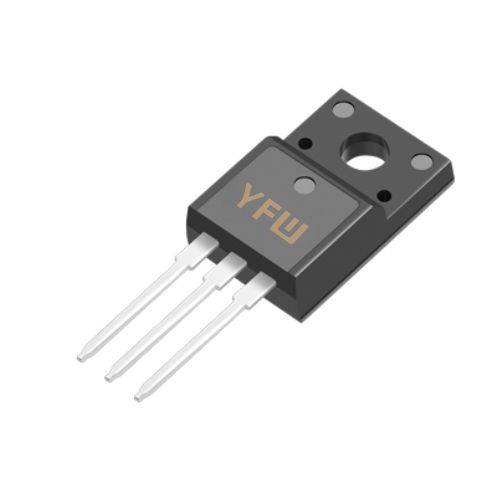

A high-frequency Triode is a semiconductor device that can operate at high frequencies, mainly used for amplifying and switching high-frequency signals. High frequency Triodes have a wide range of applications in wireless communication, radar, television, wireless networks, and other fields.

1 Composition:

A high-frequency Triode consists of three main parts: emitter, base, and collector. These three parts are formed by doping different types of impurities into semiconductor materials (usually silicon or germanium). According to different doping types, Triodes can be divided into NPN and PNP types.

2 Characteristics:

1. High frequency response: High frequency Triodes can operate at frequencies up to several GHz.

2. Small size: In order to reduce parasitic capacitance and improve frequency response, high-frequency Triodes are usually smaller than low-frequency Triodes.

3. Low noise: In high-frequency applications, low noise is a very important characteristic.

4. High gain bandwidth product: The gain bandwidth product (fT) of high-frequency Triodes is relatively high, which is an important parameter for measuring their amplification ability at high frequencies.

5. Optimized structure: In order to improve frequency performance, the base region of the high-frequency Triode is very thin to reduce the transport time of charge carriers.

3 Principle:

The working principle of high-frequency Triode is similar to that of ordinary Triode. When an appropriate voltage is applied between the base and emitter, minority carriers will pass through the base and be collected by the collector, thereby controlling the collector current. In high-frequency applications, the design of Triodes should ensure that the transmission time of charge carriers is as short as possible to reduce signal delay and phase distortion.

4 Purpose:

High frequency Triodes are widely used for:

● RF amplifier

● Oscillators

● Mixer

● Switch circuit

● Wireless communication equipment

● High speed digital circuits

5 Installation:

The installation of high-frequency Triodes requires attention to the following points:

1. Heat dissipation: High frequency Triodes generate heat during operation and require good heat dissipation measures such as heat sinks or fans.

2. Wiring: High frequency circuits have strict requirements for wiring, and lead lengths should be shortened as much as possible to reduce the impact of parasitic capacitance and inductance.

3. Anti static: During installation, anti-static measures should be taken to prevent static electricity from damaging the Triode.

4. Welding: The welding of high-frequency Triodes should be carried out quickly to avoid damage to the device caused by prolonged heating.

6 Distinguish between high-frequency Triodes and low-frequency Triodes:

1. Frequency response: High frequency Triodes are designed to operate at high frequencies, while low-frequency Triodes are suitable for low frequencies or audio frequencies.

2. Structure: The base of the high-frequency Triode is thinner to reduce the transport time of charge carriers.

3. Parameter: The gain bandwidth product (fT) of high-frequency Triodes is usually higher than that of low-frequency Triodes.

4. Size: High frequency Triodes are usually smaller than low-frequency Triodes to reduce parasitic capacitance.

5. Application areas: High frequency Triodes are used for circuits that require processing high-frequency signals, while low-frequency Triodes are used for audio amplification and low-frequency circuits.

The choice of high-frequency Triode and low-frequency Triode depends on the specific requirements of the application. The design and manufacturing requirements for high-frequency Triodes are more stringent to ensure that their performance is not affected at high frequencies. When designing high-frequency circuits, in addition to selecting suitable Triodes, factors such as circuit board design, component layout, and signal integrity also need to be considered.
