Analysis and Comparison of the Most Commonly Used Constant Current Source Circuits
Date：2025-06-06 Categories：Product knowledge Hits：589 From：Guangdong Youfeng Microelectronics Co., Ltd

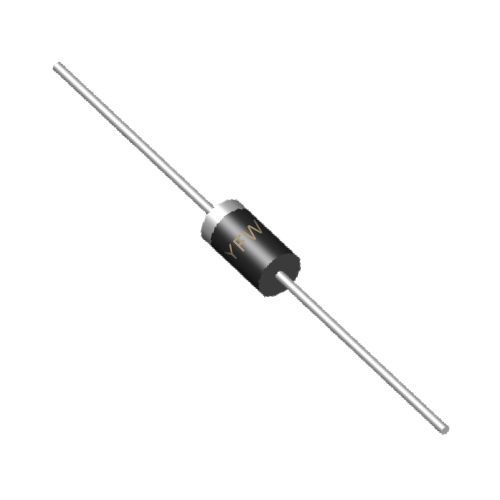

Devices like YFW’s CRD series act as two-terminal current regulators, maintaining a fixed current over a wide voltage range. They are compact, No need for external assistance biasing, and exhibit low noise, making them ideal for space-constrained applications such as portable electronics and sensor modules . YFW’s CRD diodes, available in SOD-123FL and SMA packages, combine temperature stability with easy current adjustment, offering a reliable solution for current stabilization and overcurrent protection
| Parameter | BJT | FET | Op-Amp | Current Mirror | IC (e.g., LM317) | CRD |
|---|
| Accuracy | Low (±10%) | Moderate | High (±0.1%) | Moderate | Moderate | High |
| Temperature Stability | Poor | Good | Excellent | Moderate | Good | Excellent |
| Cost | Low | Moderate | High | Low | Moderate | Low |
| Complexity | Simple | Moderate | High | Moderate | Low | Very Simple |
| Output Range | mA–A | mA–A | μA–A | μA–mA | mA–A | μA–mA |

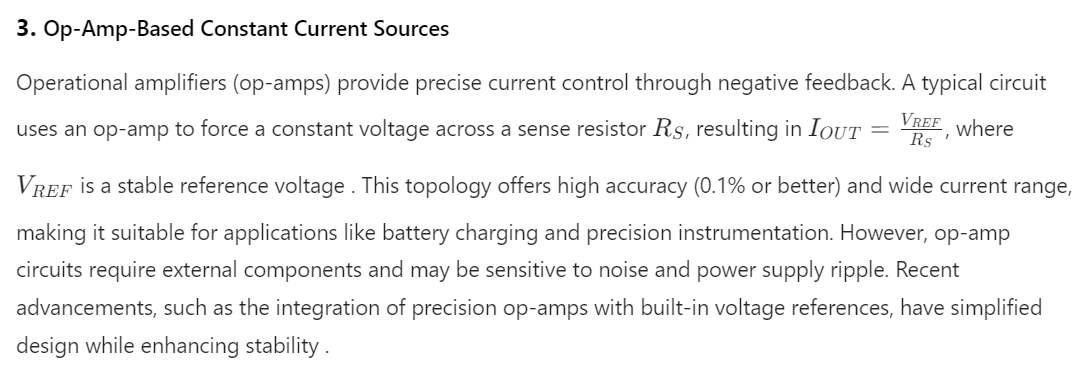

LED Drivers: Op-amp or CRD-based circuits ensure consistent brightness and longevity .

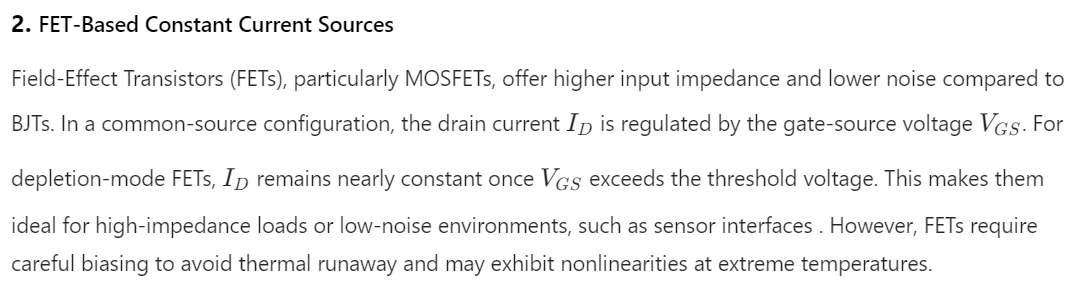

Sensor Interfaces: FET or op-amp sources provide low noise and high impedance .

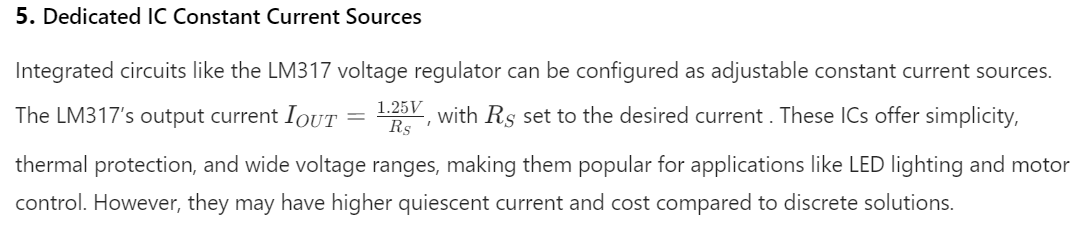

Battery Charging: LM317 or op-amp circuits offer adjustable, safe charging currents .

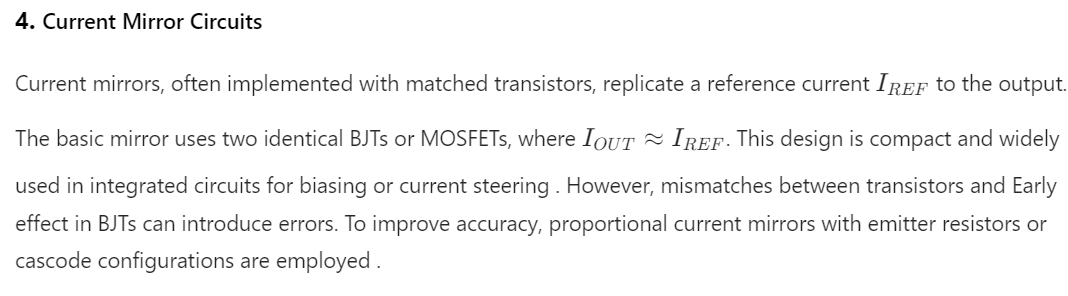

Integrated Circuits: Current mirrors bias internal stages efficiently .
Portable Devices: YFW’s CRD diodes deliver stable current in compact designs .

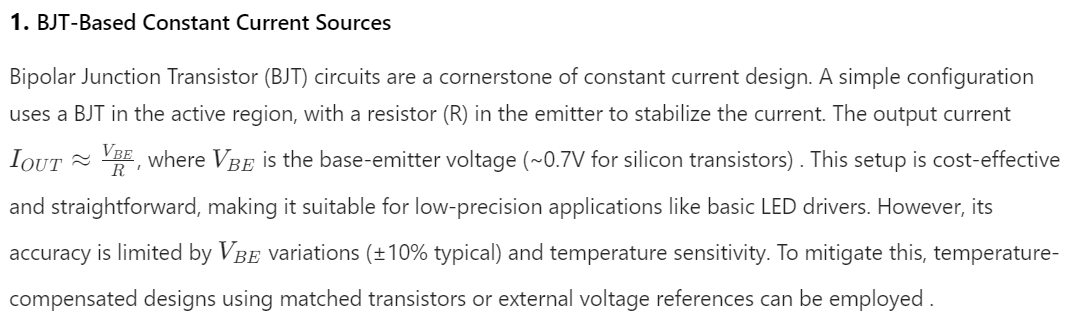

Choosing the right constant current source depends on trade-offs between accuracy, cost, and complexity. For high-precision applications, op-amp circuits or dedicated ICs are preferred, while discrete BJT/FET solutions suit cost-sensitive designs. YFW’s CRD constant current diodes stand out for their simplicity and reliability in space-constrained environments. By understanding these topologies and leveraging advancements like integrated voltage references and temperature-compensated designs, engineers can optimize performance while meeting project requirements.
YFW’s CRD series, available at www.yfwdiode.com, offers robust current regulation for diverse applications, combining small form factors with industry-leading stability
