Working Principles and Key Characteristics of Switching Power Supplies

1. Introduction

Switching power supplies (SMPS), a cornerstone of modern power electronics, leverage high-frequency switching to achieve efficient energy conversion. As a leading provider of semiconductor solutions, YFW specializes in components like diodes and MOSFETs that enhance SMPS performance across industries. This article dissects the technical mechanisms and core advantages of SMPS, highlighting how YFW’s innovations drive reliability and efficiency.

2. Core Working Principles of Switching Power Supplies

2.1 Input Stage: Rectification and Filtering

The process begins with converting AC to DC via a full-bridge rectifier using fast-recovery diodes (e.g., YFW’s US1MW, 75ns reverse recovery time), which eliminate negative voltage cycles. A bulk electrolytic capacitor smooths the pulsating DC, reducing ripple. YFW’s diodes excel here with low forward voltage drop (1.65V@1A for US1MW) and surge current capability (30A peak), minimizing conduction losses.

2.2 Power Factor Correction (PFC)

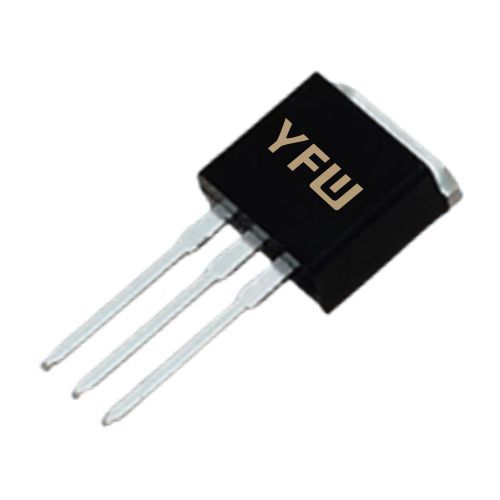

To comply with IEC standards, active PFC circuits boost the power factor to >0.99. These boost converters, driven by YFW’s MOSFETs (low Rds(on) and high switching speed), adjust current to align with voltage. YFW’s SF36 diodes (35ns reverse recovery) handle high-frequency rectification in PFC stages, ensuring minimal switching losses.

2.3 Voltage Conversion and Isolation

High-frequency transformers enable safe, regulated voltage conversion. Common topologies include:

• Flyback Converters (≤100W): Ideal for low-power applications, using YFW’s diodes to clamp voltage spikes during demagnetization, ensuring stable output.

• LLC Resonant Converters (high-power, e.g., EV chargers): YFW’s soft-recovery diodes facilitate zero-voltage switching (ZVS), achieving >95% efficiency by minimizing resonant tank losses.

2.4 Output Stage: Rectification and Regulation

On the secondary side, schottky diodes (e.g., YFW’s 20A10 TB, 1V@20A forward voltage) rectify high-frequency AC to DC, reducing conduction losses by 30% compared to standard diodes. Low-ESR capacitors (YFW’s aluminum electrolytic series) further filter ripple. A feedback loop with a PWM controller adjusts duty cycle for ±1% output voltage stability.

3. Key Characteristics of Switching Power Supplies

3.1 Exceptional Energy Efficiency (80–96%)

SMPS minimize losses by operating switches in full-on/off states. YFW’s components enhance this: MOSFETs with low gate charge reduce switching losses, while FRD series diodes (e.g., US1MW) cut reverse recovery losses by 50% versus conventional types, critical for high-frequency operation.

3.2 Compact Design for High Power Density

High-frequency operation (50kHz–1MHz) allows smaller magnetic components. YFW’s miniature packages, such as SOD-123FL for US1MW (1000V rating in a tiny footprint), enable space-saving designs without compromising voltage/current capabilities.

3.3 Adaptive Wide Input Voltage Range

SMPS handle 90–264V AC via PFC and adaptive duty cycles. YFW’s components, rated for broad voltage/current ranges (e.g., MOSFETs with 100V–600V Vds), ensure stable operation in unstable grids, critical for industrial and automotive applications.

3.4 Low Noise and EMI Compliance

YFW’s soft-recovery diodes and shielded MOSFETs mitigate high-frequency noise. Ceramic capacitors with low ESR/ESL, paired with proper layout techniques, help meet CISPR 32 Class B EMI standards, essential for sensitive devices like medical equipment.

3.5 Robust Reliability and Safety Features

YFW components undergo rigorous testing:

• High-Temperature Storage (150°C for 1000h) and Temperature Cycling (-55°C to 150°C) ensure thermal stability.

• HALT/HASS tests identify early failures in extreme conditions, guaranteeing long-term performance in harsh environments.

4. YFW’s Role in Advancing SMPS Technology

YFW’s semiconductor solutions address critical challenges:

• Efficiency Optimization: FRD series reduces reverse recovery losses, while MOSFETs with ultra-low Rds(on) minimize conduction losses.

• Miniaturization: SOD-323FL and PDFN packages enable high-power density without sacrificing reliability.

• Application-Specific Solutions: For automotive EV chargers, YFW’s 1kV-rated diodes (20A10 TB) withstand high voltage transients; in consumer electronics, SMD shottky diodes (e.g., SMAF package) deliver fast switching in compact adapters.

5. Diverse Applications of SMPS

SMPS are integral to:

• Consumer Electronics: Mobile chargers, laptops, and TVs, where YFW’s SMD components enable sleek, efficient designs.

• Industrial Systems: CNC machines and robotics benefit from wide input ranges and rugged reliability of YFW’s industrial-grade diodes/MOSFETs.

• Medical Devices: Low noise and safety compliance make SMPS ideal for MRI machines and portable diagnostics, supported by YFW’s EMI-optimized components.

• Automotive: EV onboard chargers and ADAS systems rely on high-temperature tolerance and high efficiency of YFW’s automotive-qualified products.

6. Conclusion

Switching power supplies, driven by advancements in semiconductor technology, continue to redefine power conversion with efficiency, compactness, and adaptability. YFW’s focus on innovative, reliable components empowers engineers to design next-generation SMPS for diverse applications. By integrating YFW’s diodes, MOSFETs, and modules, manufacturers can achieve optimal performance, safety, and compliance, solidifying YFW as a trusted partner in power electronics.
