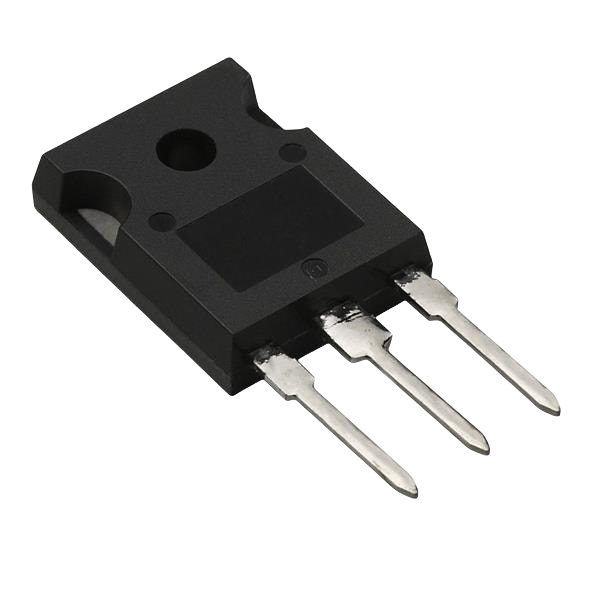

A thyristor consists of alternating P-type and N-type semiconductor layers, forming three PN junctions. It has three terminals: the anode (A), cathode (K), and gate (G). Unlike diodes, which conduct unidirectionally, thyristors remain in the off-state until a trigger signal is applied to the gate. Once triggered, they latch into conduction and remain on until the anode current drops below a critical value (holding current) or the polarity reverses. This latching behavior makes thyristors suitable for high-power applications where precise control is required.
Thyristors excel in rectification, inversion, and voltage regulation. Their high current-handling capacity (up to thousands of amperes) and voltage ratings (up to several kilovolts) make them indispensable in power systems, renewable energy inverters, and motor drives.
The operation of a thyristor relies on the interaction between its internal layers. When a positive voltage is applied to the anode relative to the cathode, the middle PN junctions (J2) become reverse-biased, blocking current flow. Applying a positive trigger pulse to the gate injects minority carriers into the N-layer, forward-biasing J2 and initiating conduction. Once Conduction，the gate loses control, and the thyristor remains on until the anode current is interrupted.
Thyristors are categorized based on their structure, triggering mechanism, and operational characteristics. Below are the most common types:
The SCR is the most widely used thyristor. It conducts current in one direction (from anode to cathode) and requires a positive gate trigger to turn on. Once triggered, it remains on until the anode current drops below the holding current. SCRs are ideal for AC-to-DC rectification, motor speed control, and light dimming. For example, in a DC power supply, an SCR converts AC voltage into adjustable DC voltage by controlling the conduction angle .
A triac is a bidirectional thyristor that can conduct current in both directions when triggered. It combines two SCRs in an anti-parallel configuration with a common gate terminal. Triacs are used in AC power control applications such as fan speed regulation, AC dimming, and heating systems. Unlike SCRs, triacs can be triggered by either positive or negative gate signals, simplifying circuit design .
GTOs are fully controllable thyristors that can be turned on and off using gate signals. They feature a multi-cell structure and require a negative gate current to turn off. GTOs offer higher switching speeds than SCRs, making them suitable for high-frequency applications like inverters and motor drives. However, their gate drive requirements are more complex compared to other thyristors .
LASCRs are triggered by light rather than electrical signals. They contain a photosensitive layer that generates carriers when illuminated, initiating conduction. This optical isolation makes LASCRs immune to electromagnetic interference (EMI) and ideal for applications requiring galvanic isolation, such as optocouplers and high-voltage power systems .
MCTs combine the advantages of MOSFETs and thyristors. They offer low on-state resistance, high switching speeds, and voltage-controlled operation. MCTs are used in medium-to-high-power applications like motor drives and uninterruptible power supplies (UPS) .
ETOs are hybrid devices that integrate a GTO with MOSFETs for improved turn-off control. They provide fast switching, high current handling, and reduced gate drive power. ETOs are used in high-power converters and renewable energy systems .
Thyristors are critical in various industries:
Industrial Control: SCRs and GTOs are used in motor drives, welding machines, and adjustable speed drives.
Power Electronics: Triacs regulate AC power in household appliances like refrigerators and air conditioners.
Renewable Energy: Thyristors enable efficient energy conversion in solar inverters and wind turbines.
Automotive: They control ignition systems and voltage regulation in vehicles.
Selecting a thyristor involves evaluating parameters such as:
Voltage Ratings: Ensure the device can handle the maximum system voltage (VDRM/VRRM).
Current Ratings: Match the on-state current (IT(AV)) to the load requirements.
Trigger Characteristics: Consider gate trigger voltage (VGT) and current (IGT) for reliable activation.
Switching Speed: GTOs and MCTs are preferred for high-frequency applications.
Thermal Management: Adequate heat sinking is essential for high-power devices to prevent overheating .
YFW Microelectronics is a global leader in semiconductor device design and manufacturing, specializing in high-performance thyristors. Our products, including SCRs, Triacs, and GTOs, are engineered to meet stringent industry standards and deliver exceptional reliability. With advanced packaging technologies and rigorous quality control, YFW thyristors are trusted in applications ranging from industrial automation to consumer electronics.
YFW’s commitment to innovation ensures our thyristors offer:
High Efficiency: Low conduction losses and fast switching for energy savings.
Robust Design: Resistance to voltage transients and thermal stress.
Customization: Tailored solutions for specific voltage, current, and environmental requirements.
Thyristors remain a cornerstone of power electronics due to their versatility, high efficiency, and cost-effectiveness. From basic SCRs to advanced ETOs, each classification serves unique applications. By understanding their working principles and selecting the right type, engineers can optimize system performance. YFW Microelectronics continues to drive innovation in this field, providing cutting-edge thyristor solutions that empower industries worldwide.
