Diode Identification Techniques: A Comprehensive Guide

1. Visual Inspection: Physical Characteristics and Markings

The first step in diode identification is visual inspection. Diodes come in various packages, such as DO-41, SMA, and TO-220, each designed for specific applications. YFW’s diodes, like the SF18 (DO-41) and SR5100 (DO-27) , feature standardized markings to indicate polarity and type.

• Polarity Indicators:
  Most diodes have a cathode marking, typically a stripe, dot, or band near one terminal. For example, YFW’s SS34 (SMB package) clearly marks the cathode with a white stripe . In axial-lead diodes, the cathode lead is often shorter than the anode.
• Package Types:

• DO-41: Commonly used for rectifier diodes (e.g., YFW’s SF18 with 1A/600V rating) .

• SMA/DO-214AC: Ideal for surface-mount applications, such as the US2G fast recovery diode .

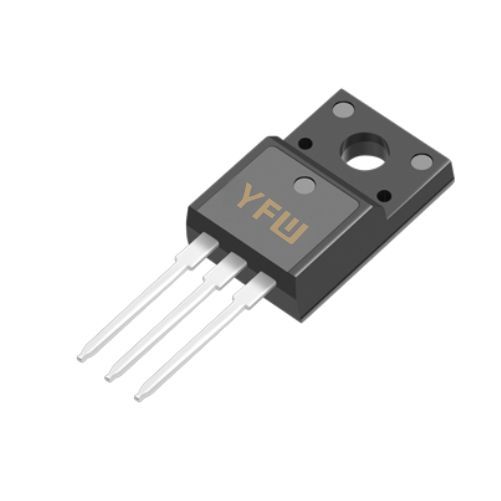

• TO-220: Power diodes (e.g., YFW’s 20A10 TB with 20A/1kV rating) .

• Color Codes and Labels:
  Some diodes use color bands to denote specifications. For instance, a diode with brown, orange, and white bands corresponds to the 1N139 type . YFW’s products often include alphanumeric codes (e.g., “YFW SS34”) for quick reference .

2. Multimeter Testing: Forward and Reverse Bias

A digital multimeter (DMM) is a versatile tool for diode testing. YFW recommends using a DMM with a diode test mode to measure voltage drop and continuity.

Forward Bias Test

1. Set the DMM to diode mode.

2. Connect the red probe to the anode and the black probe to the cathode.

3. A healthy silicon diode should display a voltage drop between 0.6V–0.7V (e.g., YFW’s FR207 fast recovery diode shows 1.28V at 2A) . Germanium diodes typically show 0.2V–0.3V.

Reverse Bias Test

1. Reverse the probe connections (red to cathode, black to anode).

2. A functional diode should indicate OL (Open Loop) or a very high resistance, as reverse current is negligible.

Note: For power diodes like YFW’s 20A10 TB, ensure the multimeter can handle high currents. If the diode fails either test, it is likely shorted or open .

3. Parameter Verification: Datasheet and Ratings

Always refer to the datasheet for precise specifications. YFW provides detailed documentation for products like the R4000 (5V/200mA) and SF36 (3A/400V with 35ns reverse recovery time) . Key parameters to check include:

• Reverse Voltage (VR): The maximum voltage the diode can withstand in reverse bias. For example, YFW’s US2G has a VR of 400V .

• Forward Current (IF): The maximum continuous current the diode can handle. YFW’s SR5100 supports 5A .

• Reverse Recovery Time (trr): Critical for high-frequency applications. YFW’s SF36 offers trr of 35ns .

4. Specialized Diode Identification

Zener Diodes

Zener diodes, like YFW’s 1N5345A, are designed to operate in reverse breakdown. To test:

1. Apply a voltage higher than the Zener voltage (e.g., 6.8V for 1N5345A) in reverse bias.

2. The diode should conduct stably at its rated voltage.

Schottky Diodes

Schottky diodes (e.g., YFW’s SS34) have low forward voltage (0.55V) and fast switching. Use a DMM to verify their low VF and ensure no reverse leakage .

Fast Recovery Diodes

Devices like YFW’s FR207 require testing trr using an oscilloscope. A pulsed current test can measure the time taken to switch from on to off .

5. Advanced Techniques for Fault Detection

• Oscilloscope Analysis:
  For dynamic testing, connect the diode to a signal generator and observe its response. A healthy diode should exhibit clear rectification without distortion .

• Component Tester:
  Tools like the Keysight B1500 Semiconductor Device Analyzer provide detailed IV curves, ideal for verifying YFW’s high-power diodes .

6. Common Pitfalls and Troubleshooting

• Incorrect Polarity: Always double-check cathode/anode connections, especially in surface-mount packages.

• Overheating: Exceeding IF or VR ratings can damage diodes. YFW’s diodes feature robust thermal design (e.g., TO-220 for heat dissipation) .

• Counterfeit Components: Ensure authenticity by purchasing from authorized distributors like LCSC .

Conclusion

Accurate diode identification is crucial for circuit reliability and performance. By combining visual inspection, multimeter testing, and datasheet verification, engineers can confidently select and validate YFW’s diodes for their applications. YFW’s commitment to quality, as seen in products like the SF36 and SR5100, ensures that our diodes meet rigorous standards, providing optimal solutions for power electronics, automotive systems, and beyond.

For detailed technical support, visit YFW’s official website or contact our engineering team. Stay tuned for more insights into semiconductor device testing and innovation.

Author: YFW Technical Team
Source: YFW Diode Knowledge Base
