Can a Transistor with a Broken Leg Be Used as a Diode?

Date:2025-05-21 Categories:Product knowledge Hits:534 From:Guangdong Youfeng Microelectronics Co., Ltd


The Structural Difference Between Transistors and Diodes

A transistor is a three-terminal device with Emitter (E), Base (B), and Collector (C) terminals, designed for signal amplification or switching. It contains two PN junctions: the Emitter-Base (E-B) junction and the Base-Collector (B-C) junction . A diode, on the other hand, is a two-terminal device with an Anode (A) and Cathode (K), relying on a single PN junction for unidirectional current flow .

When a Transistor Loses a Leg

The answer depends on which leg is broken:


  1. Broken Base (B):
    The Base controls the transistor’s operation. Without it, the device loses its amplifying capability. While the remaining E and C terminals might form a PN junction, this configuration is unreliable. The E-B and B-C junctions in a transistor are optimized for different purposes (e.g., low forward voltage for E-B, high reverse voltage for B-C), making them unsuitable for diode-like functionality .
  2. Broken Emitter (E) or Collector (C):
    If either E or C is broken, the remaining two terminals (e.g., B and C) might form a functional PN junction. For example, the B-C junction in an NPN transistor can act as a diode when biased correctly. However, its performance will differ from a dedicated diode:
    • Reverse Voltage: The B-C junction typically has a higher reverse breakdown voltage (30–50V) than the E-B junction (7–9V) .

    • Forward Voltage: Transistors are not optimized for low forward voltage drop, which is critical for diodes in rectification or voltage regulation .

    • Leakage Current: Transistors may exhibit higher leakage current in reverse bias, affecting circuit stability .

Practical Risks and Limitations

Even if a broken transistor temporarily mimics a diode, it poses significant risks:


  • Thermal Instability: Transistors generate more heat due to their design, which can lead to premature failure in diode applications .

  • Unpredictable Behavior: The remaining junctions might introduce parasitic capacitances or resistances, altering circuit performance .

  • Reliability: Long-term use of a repurposed transistor increases the likelihood of catastrophic failure, especially in high-power or high-frequency circuits .

Why YFW’s Diodes Are the Better Choice

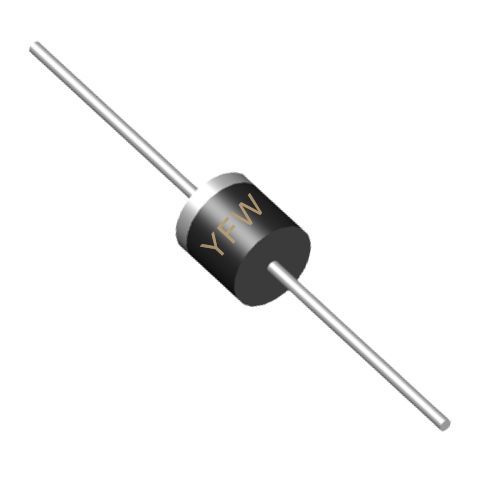

At YFW, we specialize in manufacturing high-precision diodes designed for optimal performance. For example:


  • BAS40WT Schottky Diode: Features a low forward voltage drop (0.38V at 1mA) and fast switching time, ideal for low-voltage, high-frequency applications .

  • US3MBF High-Efficiency Diode: Offers a high reverse voltage rating (1000V) and low reverse leakage current, ensuring reliability in demanding environments .


Our diodes undergo rigorous testing to meet industry standards, providing consistent results in rectification, voltage clamping, and signal processing.

Conclusion

While a transistor with a broken leg might function as a diode in theory, it is not recommended for practical use. The performance limitations, reliability risks, and lack of optimization make it an inferior solution compared to dedicated diodes. For critical applications, always replace damaged components with purpose-built diodes like those from YFW. Our products are engineered to deliver unmatched stability and efficiency, ensuring your circuits operate at their best.


For more information on YFW’s diode solutions, visit www.yfwdiode.com.


Word count: 500+
Key takeaways:


  • Transistors and diodes differ fundamentally in structure and purpose.

  • A broken transistor’s usability as a diode depends on the damaged leg.

  • YFW’s diodes offer superior performance and reliability for all applications
