Understanding the Principles and Functions of Diodes

Date:2025-05-06 Categories:Product knowledge Hits:482 From:Guangdong Youfeng Microelectronics Co., Ltd


In the realm of electronics, diodes stand as fundamental passive components with distinct unidirectional conductivity. As a key player in circuit design, the diode's operation is rooted in the properties of its semiconductor structure, making it indispensable in various electronic applications.
The Basic Principle of Diodes
A diode is essentially a two-terminal device constructed from a semiconductor material, typically silicon or germanium, with a p-n junction at its core. The p-n junction is formed by joining a p-type semiconductor (rich in positive charge carriers called "holes") and an n-type semiconductor (abundant in negative charge carriers—electrons). This junction creates a depletion region where few mobile charge carriers exist, acting as a barrier under equilibrium conditions.
When a forward bias voltage is applied—with the positive terminal connected to the p-side and the negative terminal to the n-side—the depletion region narrows. Electrons from the n-side and holes from the p-side are pushed towards the junction, combining across it and allowing current to flow easily. Conversely, under reverse bias, the depletion region widens, blocking the majority carrier flow and permitting only a tiny leakage current due to minority carriers. This unidirectional current flow is the core principle that defines a diode's behavior.
Primary Functions of Diodes
  1. Rectification: One of the most common functions of diodes is converting alternating current (AC) to direct current (DC), a process known as rectification. In rectifier circuits, diodes allow current to flow in one direction during the positive half-cycle of an AC input while blocking it during the negative half-cycle. This function is crucial in power supply units, where AC from the mains is converted to DC to power electronic devices.

  1. Voltage Regulation: Zener diodes, a special type of diode, operate in the reverse breakdown region without being damaged. They maintain a nearly constant voltage across their terminals even when the current through them changes, making them ideal for voltage regulation applications. Zener diodes ensure that the output voltage of a circuit remains stable, protecting sensitive components from voltage fluctuations.

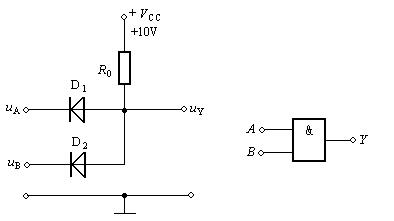

  1. Switching: Diodes can act as electronic switches in circuits. In forward bias, they conduct current like a closed switch, while in reverse bias, they block current like an open switch. This switching function is utilized in digital circuits, where diodes help in signal processing and logic operations by allowing or prohibiting signal flow based on the applied voltage.

  1. Signal Modulation and Detection: In radio frequency (RF) applications, diodes are used for signal modulation, demodulation, and detection. For example, in amplitude modulation (AM) radio receivers, diodes extract the audio signal from the modulated RF carrier by allowing current flow during the positive half-cycles, effectively demodulating the signal.

Applications in Modern Electronics
Diodes find extensive use in various electronic systems. In consumer electronics, they protect circuits from reverse polarity connections and voltage spikes. Light-emitting diodes (LEDs), a specialized type of diode, convert electrical energy into light and are widely used in lighting, displays, and indicators. In renewable energy systems, diodes prevent reverse current flow in solar panels, ensuring efficient power transfer to the grid or storage batteries.
Conclusion
From their foundational role in rectifying power to their diverse applications in signal processing and voltage control, diodes are essential building blocks of modern electronics. Their ability to control current flow unidirectionally and perform specialized functions like voltage regulation makes them integral to countless circuits. As technology continues to advance, the reliability and versatility of diodes remain pivotal, driving innovation in electronics across industries. Understanding their principles and functions is key to harnessing their full potential in circuit design and development.
