What is a varactor diode?

Varactor diode is a special type of diode designed based on the principle that the capacitance of the "PN junction" inside a regular diode can change with the applied reverse voltage. Varactor diodes are mainly used in high-frequency modulation circuits of cordless phones or landline phones to modulate low-frequency signals onto high-frequency signals and transmit them. In the working state, the modulation voltage of the varactor diode is generally applied to the negative electrode, causing the internal junction capacitance of the varactor diode to change with the variation of the modulation voltage. The malfunction of the varactor diode is mainly manifested as leakage or performance deterioration:

(1) When leakage occurs, the high-frequency modulation circuit will not work or the modulation performance will deteriorate.

(2) When the varactor performance deteriorates, the operation of the high-frequency modulation circuit becomes unstable, causing distortion in the modulated high-frequency signal sent to the other party and received by the other party.

When one of the above situations occurs, the same type of varactor diode should be replaced

2. The role of a varactor diode is that it is a semiconductor device made using the principle of variable capacitance between PN junctions, and is used as a variable capacitor in high-frequency tuning, communication, and other circuits

Varactor diodes belong to reverse bias diodes, and changing the reverse bias on their PN junction can alter the PN junction capacitance. The higher the reverse bias voltage, the less the junction capacitance, and the relationship between reverse bias voltage and junction capacitance is nonlinear.

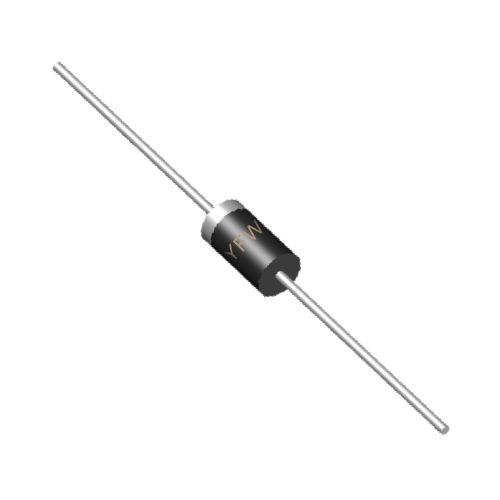

There are various packaging forms for varactor diodes, including glass shell packaging, plastic packaging, metal shell packaging, and leadless surface packaging Usually, small and medium power varactor diodes are encapsulated in glass, plastic, or surface packaging, while high-power varactor diodes are often encapsulated in gold.
