Selecting the appropriate diode model is a highly technical process that involves a deep understanding of the working principle of diodes, different types of diodes, and their applications in circuits. Here are several key factors to consider when selecting diodes:
1. Maximum forward current (IF): This is the maximum current value that a diode can continuously pass through. When selecting, it is necessary to ensure that the actual current in the circuit does not exceed this value.
2. Peak Reverse Voltage (PRV or VRM): The maximum voltage that a diode can withstand when reverse biased. It should be higher than the maximum reverse voltage that may occur in the circuit.
3. Forward voltage drop (VF): When a diode is conducting, a voltage drop occurs at both ends, and the appropriate forward voltage drop value needs to be selected according to the voltage and power loss requirements of the application.
4. Switching speed: The response speed of a diode from conduction to cutoff is crucial for high-frequency applications or switching power supplies.
5. Working temperature: The performance of diodes may vary at different working temperatures, and the appropriate working temperature range needs to be selected according to the actual usage environment.
6. Packaging type: Choose the appropriate packaging type based on the assembly method and circuit board space limitations.
7. Special functions: If special functions are required (such as voltage regulation, fast recovery, Schottky, TVS, etc.), specific types of diodes with these functions need to be selected.
Next, we will discuss in detail some common types of diodes and their selection:

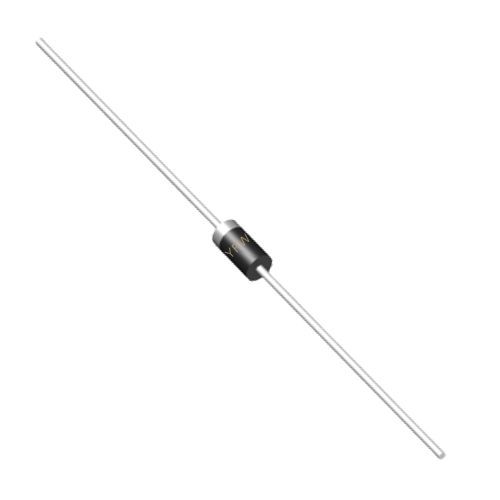

Rectifying diode: used to convert alternating current into direct current. When selecting, in addition to the above parameters, the operating frequency should also be considered.
Schottky diode: With low forward voltage drop and fast switching characteristics, it is suitable for high-efficiency power supplies and high-frequency applications.
Zener diode: used to provide a stable reference voltage. When selecting, attention should be paid to its stable voltage value and power consumption capability.
TVS diode (transient suppression diode): used to protect circuits from transient voltage surges. Important parameters include peak pulse power, transient voltage, leakage current, etc.
Light Emitting Diodes (LEDs): When selecting, in addition to current and voltage, consideration should also be given to light output, color, and packaging.
Optocoupler: comprising a light-emitting diode and a photosensitive component. When selecting, it is necessary to consider isolation voltage, conversion efficiency, and response speed.
High frequency diodes: used for RF and microwave applications, frequency range, insertion loss, and power capacity should be considered when selecting.
Finally, it should be noted that the requirements for each application are different, so when selecting diodes, the design of the entire circuit should also be considered. It is recommended to refer to the data manual of the diode during the design phase, communicate with the manufacturer, and conduct testing in the actual circuit to ensure the accuracy of the selection. In addition, attention should be paid to the supply situation in the market, as well as commercial factors such as cost and delivery time.
