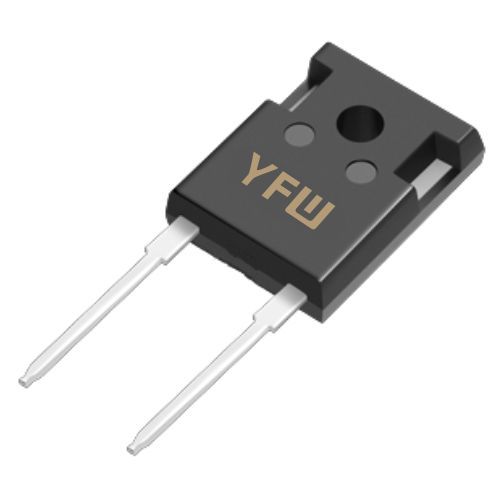

A Fast Recovery Diode (FRD) is a semiconductor device specifically designed to quickly switch from a conducting state to a cutoff state in a circuit. Compared to traditional rectifier diodes, fast recovery diodes have a shorter reverse recovery time (TRR), which makes them highly suitable for high-frequency and high-speed switching applications, such as switching power supplies, frequency converters, and power electronic conversion devices. Fast recovery diodes can reduce switching losses and improve the overall efficiency and performance of the system.
1、 Basic structure:
The basic structure of a fast recovery diode consists of a p-type semiconductor material and an n-type semiconductor material, forming a pn junction between them. This pn junction plays a role in controlling the unidirectional flow of current in the circuit. Unlike ordinary diodes, the manufacturing process of fast recovery diodes is optimized to reduce the recombination time of charge carriers, thereby achieving fast reverse recovery characteristics. This is usually achieved by introducing special dopants into semiconductor materials, optimizing depletion region widths, and using advanced semiconductor manufacturing technologies.
2、 Characteristics:
1. Unidirectional conductivity: A diode conducts electricity under forward bias and turns off under reverse bias.
2. Low forward voltage drop: There is only a small voltage drop when the diode is conducting.
3. High reverse breakdown voltage: Under reverse bias, diodes can withstand high voltages without being broken down.
4. Fast switching speed: Special types of diodes, such as Schottky diodes, can achieve very fast switching.
3、 Principle:
The working principle of fast recovery diodes is similar to that of ordinary pn junction diodes. Under forward bias conditions, the p-type side is connected to the positive electrode and the n-type side is connected to the negative electrode, narrowing the depletion region and allowing current to flow through the pn junction. Under reverse bias conditions, the depletion region widens and the current is blocked. The key characteristic of a fast recovery diode is its ability to quickly stop current flow after reverse bias. When the voltage polarity suddenly changes, the minority carriers stored in the pn junction need to be cleared in order to cut off the current. Fast recovery diodes accelerate this process through optimized design, achieving the goal of quickly recovering to the cutoff state.
4、 Application:
Fast recovery diodes are widely used in various electronic and power electronic devices due to their fast switching characteristics:
1. Switching power supply: As a rectifier device in power converters, it provides efficient energy conversion.
2. Inverter: Used in solar inverters and other types of inverters to convert direct current into alternating current.
3. Motor control: Used in motor drive circuits to achieve precise motor speed and torque control.
4. Welding machine: As the main rectifier component in welding machines, it provides stable DC output.
5. Communication equipment: Used in power management of RF power amplifiers to ensure clear signal transmission.
6. Vehicle charger: Used for efficient energy management and conversion in electric vehicle chargers.
5、 Installation:
The installation of fast recovery diodes should consider the following factors:
1. Polarity: Ensure the correct polarity connection of the diode, usually with the anode marked with a ring or arrow.
2. Heat dissipation: Due to the generation of heat during the switching process, appropriate heat sinks or fins should be used, and good ventilation should be ensured.
3. Mechanical installation: Ensure that the diode is securely installed to avoid physical damage caused by vibration or impact.
4. Electrical isolation: If necessary, use insulation gaskets and sleeves to isolate the metal parts of the diode to prevent short circuits.
5. Anti static: Take anti-static measures during installation, as static electricity may damage semiconductor materials.
6、 Fault analysis:
Fault analysis usually involves the following aspects:
1. Forward conduction fault: If the diode cannot conduct under forward bias, it may be due to internal structural damage or solder joint failure.
2. Excessive reverse leakage current: If the leakage current of the diode exceeds the specification during reverse bias, it may be due to internal breakdown or surface contamination of the diode.
3. Extended reverse recovery time: If the reverse recovery time of a diode is longer than normal, it may be due to device aging or overheating damage.
4. Thermal runaway: When operating at high temperatures, if there is insufficient heat dissipation, the diode may overheat, resulting in decreased performance or even burnout.
7、 Development history:
The development of fast recovery diodes began in the 1950s, when the demand for high-speed switching devices in the electronics industry was increasing. The initial diodes limited the development of power conversion technology due to their slow switching speed. To overcome this limitation, researchers have begun exploring how to reduce the carrier storage of diodes to improve their switching speed.
In the 1970s, with the advancement of solid-state electronics, fast recovery diodes were significantly improved, and the reverse recovery time was greatly reduced, making them suitable for use in high-frequency applications. These improvements include optimizing the doping level of semiconductors, improving manufacturing processes, and introducing new semiconductor materials.
In the 21st century, with the rapid development of power electronics, the application fields of fast recovery diodes have become more extensive. The introduction of new materials such as silicon carbide (SiC) and gallium nitride (GaN) further enhances the performance of diodes, including shorter recovery time and higher temperature stability. These technological advancements enable fast recovery diodes to operate in more demanding environments, meeting the strict requirements for efficiency and reliability in modern power conversion systems.
