What is a varactor diode, its composition, classification, operating procedures, and development trends

Date:2025-06-30 Categories:Product knowledge Hits:685 From:Guangdong Youfeng Microelectronics Co., Ltd

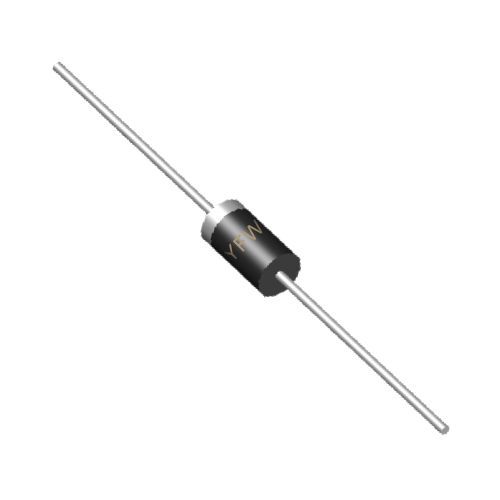

Variable capacitance diode, also known as variable capacitance diode, tuning diode or voltage controlled diode, is a special semiconductor device with adjustable capacitance characteristics. Varactor diodes are widely used in wireless communication, radio frequency tuning, frequency synthesis, oscillation and other fields.

1. Composition:

Varactor diodes are composed of two distinct semiconductor materials, typically a combination of highly doped N-type silicon material and low doped P-type silicon material. There is an adjustable space charge region at the interface between the two, and the capacitance value of this region will change when forward or reverse biased.

2. Characteristics:

(1) Adjustable capacitance: By changing the bias voltage of the diode, the capacitance value can be precisely adjusted. This makes varactor diodes very suitable for frequency tuning in wireless communication.

(2) Quick response: The capacitance value of the varactor diode changes very quickly, and the response speed is fast.

(3) Temperature stability: Compared to other variable capacitors, the capacitance value of a varactor diode is less sensitive to temperature changes.

(4) Good RF performance: Variable capacitance diodes exhibit excellent characteristics in the high-frequency range, and are therefore widely used in wireless communication systems.

(5) Compact size: Variable capacitance diodes have a small volume and can be easily integrated into microcircuits.

3. Principle:

The capacitance value of a varactor diode is achieved by adjusting the space charge region at the junction interface. When a reverse bias is applied to the diode, the space charge region expands, resulting in an increase in capacitance value; When a forward bias is applied, the space charge region shrinks, resulting in a decrease in capacitance value. The variability of this capacitor is controlled by the electric field between PN junctions.

4. Classification:

Varactor diodes can be classified into various types based on the material type and structural characteristics between PN junctions, such as varactor diodes, complementary pair (COP) diodes, MESFET diodes, etc.

5. Operating procedures:

When operating a varactor diode, the following points should be noted:

(1) Reasonable bias voltage: Select the appropriate bias voltage according to specific application requirements to ensure the required capacitance range.

(2) Protection against reverse current: To prevent diode burnout, attention should be paid to limiting the magnitude of reverse current and avoiding exceeding its rated value.

(3) Temperature control: The capacitance value of the varactor diode will fluctuate with temperature changes. To achieve better performance, the ambient temperature should be controlled as much as possible.

6. Development Trends:

With the rapid development of wireless communication technology, the demand for frequency tuning and signal filtering continues to increase, and the application prospects of varactor diodes are very broad. Future development trends include:

(1) High integration: With the advancement of microelectronics technology, varactor diodes will become increasingly miniaturized and highly integrated to meet the needs of high-density integrated circuits.

(2) Multi band coverage: To meet the requirements of multi band wireless communication systems, varactor diodes need to have the characteristics of wide tuning range and wide frequency coverage.

(3) Low power design: In the fields of mobile devices and the Internet of Things, the demand for power consumption is increasing, so varactor diodes need to be designed with low power consumption to extend device life.

(4) High frequency and high speed: Variable capacitance diodes need to provide higher operating frequencies and faster response speeds to meet the processing requirements of high-frequency and high-speed signals in the RF field
