TVS diodes operate on the principle of avalanche breakdown, a phenomenon where a semiconductor junction allows a large current to flow when a critical voltage threshold is exceeded. Unlike traditional Zener diodes, which are primarily used for voltage regulation, TVS diodes are optimized for handling high-energy transients. When a voltage surge occurs, the TVS diode rapidly transitions from a high-impedance state to a low-impedance state, clamping the voltage to a safe level (known as the clamping voltage, \(V_C\)) and redirecting the excess current to ground. This process happens in as little as \(1 \times 10^{-12}\) seconds, ensuring that connected components like microprocessors, sensors, and communication modules remain unharmed.

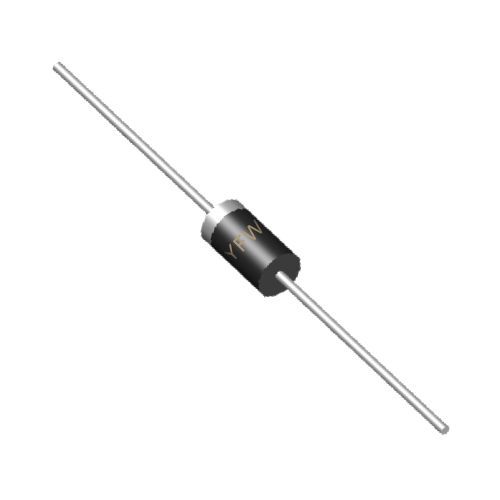

TVS diodes come in two main types: unidirectional and bidirectional. Unidirectional diodes protect against voltage spikes in a single polarity, making them ideal for DC circuits, while bidirectional diodes handle both positive and negative transients, suitable for AC applications or bidirectional signal lines. Their compact form factors—ranging from surface-mount (SMA, SMB) to through-hole packages—enable seamless integration into modern, space-constrained designs.
While other protection devices like fuses, metal oxide varistors (MOVs), or traditional Zener diodes exist, TVS diodes offer unparalleled advantages:
TVS diodes react instantaneously to voltage surges, whereas MOVs and fuses exhibit delayed responses. For example, a TVS diode can clamp a 1000V spike to 50V within picoseconds, while an MOV might take nanoseconds—an eternity in the world of high-speed electronics. This speed is critical for protecting components like USB ports, HDMI interfaces, and automotive ECUs, where even a nanosecond delay could cause data corruption or hardware failure.
TVS diodes are engineered to handle repetitive high-energy transients without degradation. For instance, YFW’s SMAJ51A TVS diode can absorb 400W of transient power while maintaining a clamping voltage of 62.7V, ensuring reliable protection in harsh environments. In contrast, Zener diodes may fail under sustained overvoltage due to their limited power-handling capabilities.
TVS diodes operate with minimal leakage current (\(I_R\)) under normal conditions, ensuring they do not interfere with the circuit’s functionality. For example, YFW’s SMBJ14A TVS diode has a leakage current of ≤1µA at its rated voltage, making it suitable for battery-powered devices where energy efficiency is paramount.
TVS diodes are built to withstand extreme temperatures, humidity, and mechanical stress. YFW’s TVS diodes, for instance, are RoHS-compliant and undergo rigorous testing to meet UL certification standards (File #E331408), ensuring long-term reliability in automotive, industrial, and consumer electronics applications.
The versatility of TVS diodes makes them indispensable across a wide range of sectors:
In vehicles, TVS diodes protect against voltage spikes caused by alternator load dumps, ignition transients, and ESD events. For example, YFW’s TVS diodes are used in battery management systems (BMS), electric vehicle (EV) charging modules, and ADAS sensors to ensure safe and reliable operation. With the global automotive TVS market projected to grow at a CAGR of 12% by 2030, demand for high-reliability solutions like YFW’s products is soaring.
From smartphones to smart home devices, TVS diodes shield against ESD during manufacturing, transportation, and end-user interactions. YFW’s SMAF10CA bidirectional TVS diode, for instance, is designed for USB 3.0/4.0 ports, providing low-capacitance protection (<5pF) without degrading signal integrity.
In industrial settings, TVS diodes safeguard PLCs, motor drives, and control systems from voltage transients induced by machinery or lightning. In telecommunications, they protect 5G base stations and fiber-optic networks from surges caused by inductive loads or power grid instability. YFW’s TVS diodes are also used in renewable energy systems, such as solar inverters, to handle voltage fluctuations during grid integration.
Selecting the optimal TVS diode involves evaluating several parameters:
The clamping voltage must be lower than the maximum rated voltage of the protected component. For example, if a microcontroller operates at 5V, a TVS diode with \(V_C \leq 5.5V\) would be appropriate.
This is the maximum continuous voltage the TVS diode can handle without activating. It should match the circuit’s nominal voltage to avoid false triggering.
This specifies the maximum transient power the diode can absorb. YFW’s SMCJ40CA, for instance, offers 1500W peak pulse power, making it suitable for high-energy applications like industrial machinery.
For signal lines, low-capacitance TVS diodes (e.g., <10pF) are essential to prevent signal distortion. YFW’s SMAF series, with capacitances as low as 3pF, is ideal for high-speed data interfaces.
As a leading manufacturer of semiconductor solutions, YFW combines cutting-edge technology with rigorous quality control to deliver TVS diodes that exceed industry standards. Here’s what sets YFW apart:
YFW offers a comprehensive range of TVS diodes, including unidirectional, bidirectional, and low-capacitance variants, covering voltages from 5V to 440V. Their SMAJ, SMBJ, and SMCJ series are widely used in automotive, industrial, and consumer electronics.
YFW collaborates closely with clients to develop tailored TVS solutions. For example, they can adjust clamping voltages or package sizes to meet specific design requirements, ensuring optimal performance in unique applications.
All YFW TVS diodes are RoHS-compliant and undergo strict testing for temperature cycling, humidity, and ESD immunity. Their UL certification (File #E331408) and ISO 9001:2015 compliance further validate their commitment to quality.
With manufacturing facilities in China and a global distribution network, YFW ensures prompt delivery and technical support, even for large-scale projects. Their team of engineers provides detailed datasheets and application notes to assist customers in selecting the right TVS diode for their needs.
As electronics become more compact and interconnected, the demand for advanced TVS diodes continues to rise. Key trends driving innovation include:
Manufacturers like YFW are developing smaller, surface-mount TVS diodes (e.g., 0402 and 0201 packages) to meet the space constraints of wearable devices and IoT sensors.
With the proliferation of 5G and USB4, TVS diodes must offer ultra-low capacitance (<1pF) to protect high-frequency signal lines without degrading performance.
RoHS-compliant and lead-free TVS diodes are becoming the norm, aligning with global sustainability goals. YFW’s entire product line adheres to these standards, minimizing environmental impact.
In an age where electronic systems are both ubiquitous and increasingly vulnerable to voltage transients, TVS diodes are no longer optional—they are essential. Their ability to provide fast, reliable, and cost-effective protection makes them the be the first choice solution for industries ranging from automotive to telecommunications.
At YFW, we take pride in delivering TVS diodes that not only meet but exceed industry benchmarks. Our commitment to innovation, quality, and customer collaboration ensures that our products are at the forefront of transient voltage protection. Whether you’re designing a next-gen EV or a consumer gadget, YFW’s TVS diodes are your guarantee of robust, long-lasting circuit protection.
