Phenomena of Common Electronic Components After Damage

Resistors

Resistors are fundamental components that control the flow of current in a circuit. When a resistor is damaged, one of the most common phenomena is an open circuit. This means that the electrical path through the resistor is broken, and no current can flow. In such cases, the voltage across the resistor will be equal to the supply voltage, as if the resistor is not even present in the circuit. Another possible sign of resistor damage is overheating, which can cause the resistor to change color or even burn. This is often a result of the resistor being subjected to a current or power level beyond its rated capacity. If a resistor overheats, its resistance value may also change, leading to incorrect operation of the circuit. For example, in a simple LED circuit, if the current - limiting resistor burns out, the LED will not light up at all.

Capacitors

Capacitors store electrical energy and are used in a wide range of applications, from filtering to energy storage. A damaged capacitor may show several symptoms. One common issue is leakage. When a capacitor leaks, it gradually loses its ability to store charge, and a small current may flow through it continuously. This can lead to a decrease in the overall performance of the circuit, such as a reduction in the filtering effectiveness in power supply circuits. In extreme cases, a capacitor may bulge or even explode. This is usually due to over - voltage or excessive internal pressure caused by overheating. When a capacitor bulges or explodes, it is clearly visible, and the circuit will likely cease to function properly. For instance, in a motherboard's power supply section, a bulging capacitor can cause instability in the power delivery to various components, leading to system crashes or intermittent failures.

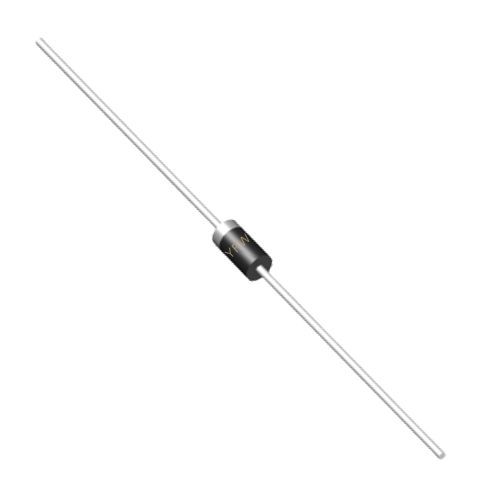

Diodes

Diodes are semiconductor devices that allow current to flow in one direction only. When a diode fails, it can either become an open circuit or a short circuit. An open - circuit diode will prevent current from flowing in the forward direction, even when the appropriate voltage is applied. In a rectifier circuit, if one of the diodes in a diode bridge becomes open, the output voltage will be severely distorted, and the circuit may not be able to convert alternating current to direct current effectively. On the other hand, a short - circuit diode will allow current to flow in both directions, which can cause abnormal current flow in the circuit and potentially damage other components. For example, in a simple battery - charging circuit, a short - circuit diode can lead to reverse current flow, discharging the battery instead of charging it.

Transistors

Transistors are crucial for amplification and switching in electronic circuits. A damaged transistor can cause a variety of problems. In an amplifier circuit, if a transistor fails, the amplification function will be impaired. The output signal may be distorted, have reduced amplitude, or disappear altogether. In a switching circuit, a transistor that fails to turn on or off properly can lead to incorrect operation of the circuit. For example, in a motor - control circuit, if the transistor used to switch the motor's power supply fails, the motor may not start, run at an incorrect speed, or make abnormal noises. Physical damage to a transistor, such as a cracked package, can also be an indication of failure.

Integrated Circuits (ICs)

Integrated circuits are complex assemblies of multiple electronic components on a single chip. When an IC is damaged, the symptoms can be quite diverse and often depend on the specific function of the IC. One common sign is a complete failure of the circuit's function. For example, in a microcontroller - based system, if the microcontroller IC fails, the entire system may stop responding, and no data will be processed or transmitted. Another possible phenomenon is overheating. A damaged IC may draw excessive current, causing it to heat up. This can sometimes be detected by touching the IC (with appropriate precautions to avoid electric shock) and feeling an unusually high temperature. In some cases, an IC may exhibit intermittent failures, where the circuit works properly for a while and then suddenly malfunctions. This can be particularly difficult to diagnose as it may be due to internal electrical shorts or open circuits that are not always present.

In conclusion, being able to recognize the phenomena associated with damaged electronic components is essential for anyone working with electronics, whether it's for repair, maintenance, or circuit design. By understanding these symptoms, technicians and engineers can more efficiently identify and rectify problems in electronic circuits, ensuring the smooth operation of various electronic devices
