At the core of a diode’s operation is the PN junction, a boundary formed between two types of semiconductor materials: P-type (with an excess of positive charge carriers, or “holes”) and N-type (with an excess of negative charge carriers, or electrons). When these two materials are joined, a depletion region forms at the junction, where mobile charge carriers are swept away by the built-in electric field created by ionized atoms in the P and N regions.
When a positive voltage (forward bias) is applied across the diode, with the anode connected to the positive terminal and the cathode to the negative terminal, the external electric field opposes the built-in field in the depletion region. This reduces the width of the depletion region, allowing electrons from the N-type region and holes from the P-type region to cross the junction. Electrons and holes recombine at the junction, and a continuous current flows through the diode. The forward voltage required to overcome the depletion region’s barrier, known as the forward voltage drop, varies depending on the semiconductor material—typically around 0.7V for silicon diodes and 0.3V for germanium diodes.
Under reverse biasing, the anode is connected to the negative terminal, and the cathode to the positive terminal. The external electric field reinforces the built-in field, widening the depletion region. In this state, the diode acts as an insulator, and only a very small reverse leakage current flows, caused by minority carriers (electrons in P-type and holes in N-type) drifting across the junction. If the reverse voltage exceeds a critical value called the breakdown voltage, the diode enters a state of avalanche or Zener breakdown, where a sudden large current flows. While this is destructive for standard diodes, specialized diodes like Zener diodes utilize this property for voltage regulation.
Diodes are classified based on their structure, material, and operational characteristics. Below are the most common types:
The simplest and most widely used diodes, PN junction diodes are constructed from a single PN junction. They exhibit the classic diode behavior described above, allowing current in one direction (forward bias) and blocking it in the opposite direction (reverse bias). Made from silicon (for higher temperature and voltage tolerance) or germanium (for lower forward voltage drop but lower temperature stability), these diodes are used in rectifier circuits to convert alternating current (AC) to direct current (DC), such as in power supplies.
Schottky diodes, also known as hot-carrier diodes, are formed by the junction between a metal and an N-type semiconductor, eliminating the P-type layer. This results in a lower forward voltage drop (0.15–0.45V) and faster switching speeds compared to PN junction diodes, as there is no minority carrier storage effect. Schottky diodes are ideal for high-frequency applications and low-voltage rectification, such as in switching power supplies, solar inverters, and RF circuits.
Zener diodes are designed to operate in the reverse breakdown region without being destroyed. They utilize either the Zener effect (quantum tunneling of electrons at low breakdown voltages, <5V) or the avalanche effect (impact ionization at higher voltages). By maintaining a nearly constant voltage across their terminals despite variations in current, Zener diodes are used for voltage regulation, surge protection, and reference voltage applications in circuits.
LEDs are optoelectronic diodes that emit light when forward biased. When electrons and holes recombine in the PN junction of a semiconductor material like gallium arsenide (GaAs) or gallium nitride (GaN), energy is released in the form of photons (light). The color of the light depends on the bandgap of the semiconductor, allowing LEDs to produce a wide range of wavelengths, from infrared to ultraviolet. LEDs are widely used in lighting, displays, indicators, and optical communication systems due to their energy efficiency, long lifespan, and rapid switching capabilities.
Photodiodes operate in reverse bias and convert light into electrical current. When photons with energy greater than the semiconductor’s bandgap strike the PN junction, they generate electron-hole pairs, which are separated by the built-in electric field, producing a photocurrent proportional to the incident light intensity. Photodiodes are used in applications such as photodetectors in optical communication, solar cells (which can be seen as large-area photodiodes), and light-sensitive sensors.
Varactor diodes (or varicap diodes) exploit the capacitance change of the depletion region under reverse bias. As the reverse voltage increases, the width of the depletion region expands, reducing the junction capacitance, and vice versa. This voltage-dependent capacitance makes varactor diodes useful in tuning circuits, such as in radio frequency (RF) filters, oscillators, and phase-locked loops (PLLs), where they allow electronic adjustment of resonant frequencies.
Tunnel diodes utilize the quantum mechanical tunneling effect through a very narrow depletion region created by heavily doped P and N regions. They exhibit a negative differential resistance (NDR) in part of their voltage-current characteristic, meaning an increase in voltage can lead to a decrease in current. This unique property makes tunnel diodes suitable for high-frequency applications like oscillators, amplifiers, and switching circuits operating at microwave frequencies.
The diverse classifications of diodes enable their use in a wide array of electronic systems:
Rectification: PN junction diodes convert AC to DC in power supplies.
Voltage Regulation: Zener diodes maintain stable output voltages in circuits.
Signal Processing: Schottky diodes and tunnel diodes handle high-frequency signals in radios and communication devices.
Optoelectronics: LEDs and photodiodes enable light emission and detection in lighting, displays, and solar energy systems.
Tuning and Frequency Control: Varactor diodes adjust resonant frequencies in RF and microwave circuits.
Diodes, with their fundamental role in controlling current flow, are indispensable in modern electronics. Their operation relies on the physics of PN junctions and semiconductor behavior, leading to a wide range of specialized designs tailored for specific applications. From the basic rectification in power supplies to the advanced optoelectronic functions in LEDs and photodiodes, each type of diode serves a unique purpose, driving innovation in industries from consumer electronics to renewable energy. Understanding their working principles and classifications is essential for engineers and designers to select the right component for optimizing circuit performance and functionality.

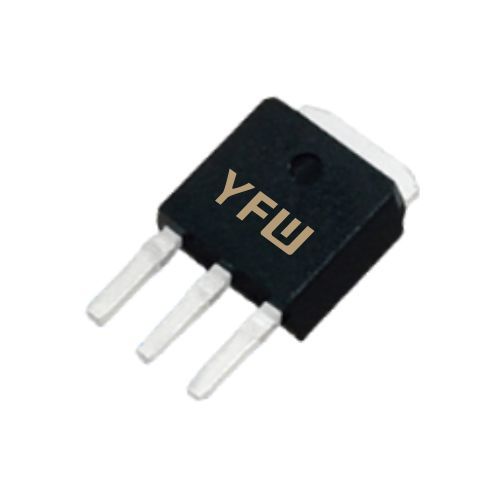

By leveraging the diverse capabilities of diodes, manufacturers like YFW (
https://www.yfwdiode.com/) continue to provide high-quality semiconductor solutions, ensuring reliability and efficiency in electronic systems worldwide. Whether for standard rectification or cutting-edge optoelectronic applications, diodes remain a cornerstone of modern technology, bridging the gap between theoretical physics and practical engineering
