A freewheeling diode, also known as a flyback or snubber diode, is a semiconductor device connected in parallel across inductive components like relays, motors, or transformers . Its primary purpose is to mitigate voltage spikes generated when inductive currents abruptly change, such as during switching events. By providing a low-impedance path for the induced current, it protects adjacent components from damage caused by high-voltage transients .
Inductive loads store energy in magnetic fields when energized. When the power supply is interrupted (e.g., a switch opens), the collapsing magnetic field induces a reverse voltage across the inductor. This voltage can reach magnitudes several times the supply voltage, potentially damaging sensitive components like transistors or integrated circuits .
The freewheeling diode addresses this by reverse-biasing during normal operation (when the switch is closed) and forward-biasing when the switch opens. This allows the inductive current to circulate through the diode, forming a closed loop that dissipates the stored energy gradually. The diode’s fast response time minimizes the duration of the voltage spike, ensuring circuit stability .
In rectifier systems, freewheeling diodes are pivotal for optimizing performance and reliability:
Smoothing Output Current:
In full-wave or bridge rectifiers, inductors are often used to filter ripple. When the rectifier’s output voltage drops below the inductor’s voltage during the AC cycle, the freewheeling diode conducts, maintaining continuous current flow to the load. This reduces output ripple and ensures a stable DC voltage .
Protecting Switching Components:
In switch-mode power supplies (SMPS), the diode prevents voltage overshoots when the switching transistor turns off. For example, in a Buck converter, the freewheeling diode allows the inductor current to continue flowing, ensuring efficient energy transfer and protecting the MOSFET from breakdown .
Enhancing Efficiency:
By recycling energy stored in inductors rather than allowing it to dissipate as heat, freewheeling diodes improve overall system efficiency. YFW’s advanced designs, such as Schottky diodes with low forward voltage drops, further minimize power losses .

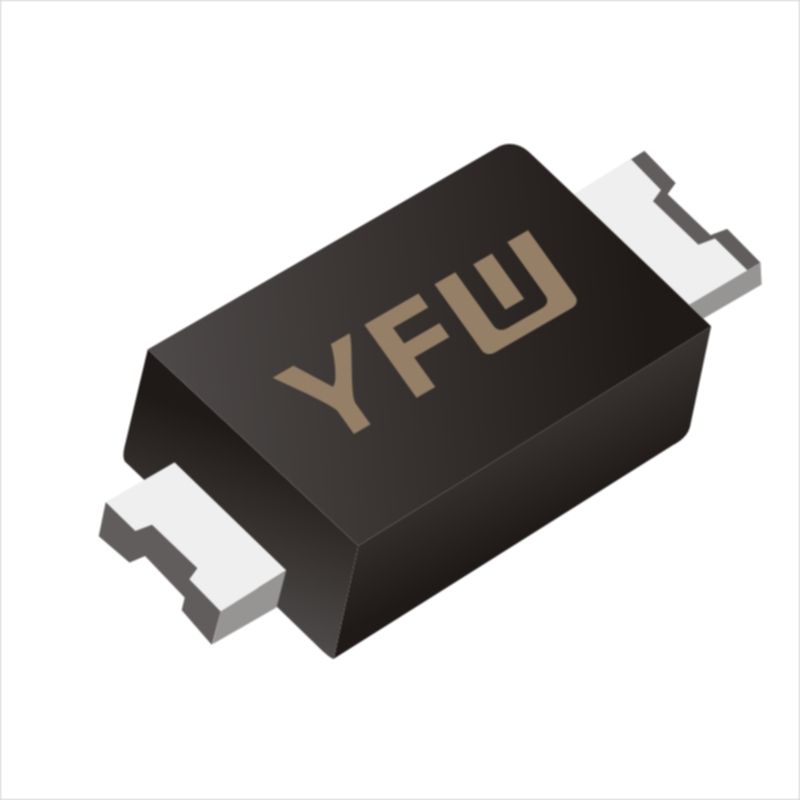

YFW’s freewheeling diodes are engineered to excel in demanding environments:
Fast Recovery: Ultra-fast recovery diodes reduce reverse recovery time, critical for high-frequency applications .
High Voltage Handling: Robust designs withstand voltage surges up to 10 times the supply voltage .
Reliability: Stringent quality control ensures long-term performance in automotive, industrial, and renewable energy systems .
Freewheeling diodes are indispensable in rectifier circuits, safeguarding components and enhancing efficiency. By understanding their role in managing inductive transients, engineers can design more robust systems. YFW’s commitment to innovation ensures our diodes deliver optimal performance, making them the preferred choice for industries worldwide.
