Understanding Varactor Diodes: Working Principle and Key Features

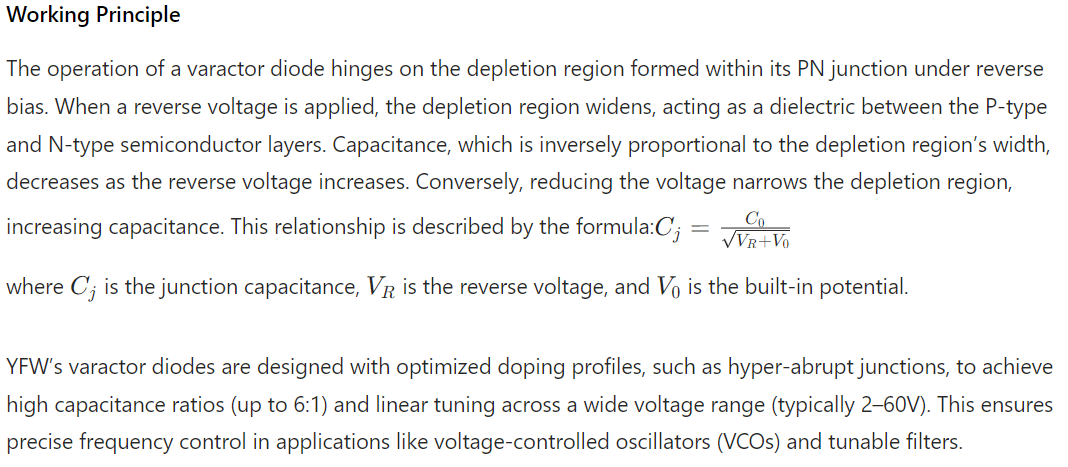

Key Features and Advantages

1. Voltage-Tunable CapacitanceVaractor diodes offer continuous capacitance adjustment without mechanical parts, unlike traditional variable capacitors. This eliminates wear and tear while enabling rapid electronic tuning, critical for applications like RF signal processing and 5G IoT devices. YFW’s products excel in this domain, providing stable capacitance variation even under high-frequency conditions.
2. High-Q PerformanceYFW’s varactor diodes are engineered for low parasitic resistance and high-quality factor (Q), minimizing energy loss in resonant circuits. For instance, our GVD series features Q values exceeding 100 at 1 GHz, ensuring efficient signal handling in VHF to microwave applications.
3. Low DistortionOperating in reverse bias, varactor diodes exhibit minimal forward current, reducing nonlinear distortion. This makes them ideal for frequency modulation (FM) systems and parametric amplifiers, where signal integrity is paramount.
4. Wide Capacitance RangeDepending on the doping profile, YFW’s varactors deliver capacitance ranges from a few picofarads (pF) to over 100 pF. Hyper-abrupt types, in particular, offer extended tuning ratios, allowing designers to cover broad frequency bands with a single component.
5. Compact and Rugged DesignYFW’s surface-mount packages (e.g., SOD-323, SMA) ensure space-efficient integration, while hermetic sealing protects against environmental stressors. This durability is critical for industrial and automotive applications.

Applications

• RF Tuning: In radio receivers and transmitters, varactor diodes adjust resonance frequencies for channel selection.

• 5G and IoT: Tunable antennas in IoT sensors rely on varactors to optimize signal reception across multiple frequency bands.

• Oscillators: VCOs in phase-locked loops (PLLs) use varactors to generate stable, adjustable frequencies for wireless communication systems.

• Filters: Varactor-based tunable filters enable dynamic bandwidth adjustment in radar and satellite receivers.
