Key Characteristic Parameters of Field-Effect Transistors

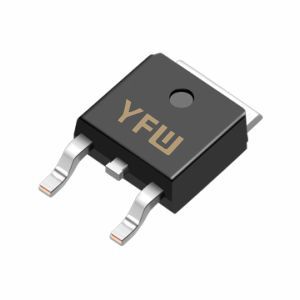

Key Characteristic Parameters of Field-Effect Transistors Field-effect transistors (FETs) possess a set of characteristic parameters that define their performance and suitability for diverse electronic applications. Understanding these parameters is essential for engineers and enthusiasts alike when designing or selecting FETs for a particular circuit. One of the foremost parameters is the threshold voltage ($V_{TH}$). It represents the gate-to-source voltage ($V_{GS}$) at which the FET just begins to conduct. For n-channel FETs, as $V_{GS}$ increases above $V_{TH}$, a conductive channel forms between the source and the drain, allowing current to flow. Precise control of $V_{TH}$ is crucial in applications like low-power digital circuits, where transistors need to switch on and off accurately at specific voltage levels. In battery-powered devices such as smartphones and wearables, FETs with well-defined threshold voltages help optimize power consumption by ensuring components operate only when necessary. The drain current ($I_D$) is another vital parameter. It measures the amount of current flowing from the source to the drain under given operating conditions. $I_D$ is a function of $V_{GS}$ and the drain-to-source voltage ($V_{DS}$). In power amplifier circuits, for example, FETs with high $I_D$ capabilities are selected to handle large signal amplitudes. This enables the efficient amplification of audio signals in speakers or radio frequency signals in communication equipment, ensuring strong and clear output. Transconductance ($g_m$) quantifies the relationship between the change in drain current and the change in gate-to-source voltage. It reflects the FET's ability to amplify signals. A higher $g_m$ indicates better amplification efficiency. In analog amplifier circuits, such as those used in musical instrument amplifiers, FETs with a substantial transconductance are favored. They can precisely amplify the delicate nuances of the input signal, reproducing rich and accurate sound for musicians and audiophiles. The on-resistance ($R_{DS(on)}$) is significant, especially in power applications. It is the resistance between the source and the drain when the FET is fully on. Lower $R_{DS(on)}$ values are desirable as they result in less power dissipation across the transistor. In switching power supplies, FETs with minimal on-resistance help convert electrical energy efficiently, reducing heat generation and improving overall system efficiency. This is crucial for everything from laptop chargers to industrial power converters. Breakdown voltage ($V_{(BR)DS}$) defines the maximum drain-to-source voltage the FET can withstand before breakdown occurs. In high-voltage applications like electric vehicle chargers and power grid equipment, FETs with adequate breakdown voltages must be employed to ensure reliable operation. If the applied voltage exceeds $V_{(BR)DS}$, the FET can be permanently damaged, leading to system failure. In summary, the characteristic parameters of FETs – threshold voltage, drain current, transconductance, on-resistance, and breakdown voltage – play pivotal roles in dictating their functionality. By carefully considering these parameters, engineers can harness the full potential of FETs to create innovative, high-performance electronic systems for a wide range of applications, from consumer electronics to advanced industrial technologies.
